Climbing Knots
An assortment of knots that may be useful for climbing, mountaineering, camping, etc.
Bachmann Knot
This knot is easier to slide than a Prusik. Here is a video of how to do it:
Bowline
The bowline can be used for tying loops around things.
Butterfly
Also know as the alpine butterfly. The butterfly can be used for putting a loop in the middle of the rope. It is useful for things like roping up for glacier travel as it can be pulled from both directions.
See Also
- Climbing Magazine's tech tip on the Alpine butterfly shows how to use it to join two ropes for a free-hanging rappel (where you must pass-the-knot).
Clove Hitch
The clove hitch can be used for fixing a loop of rope to an anchor point. A way to remember it might be, "Make two identical loops, and put the back one on top of the front one."
See Also
- Bishop guide SP Parker has an article about Use and Abuse of the Clove Hitch, which describes how you have to be careful how the knot is seated on your carabiner. If you do it wrong, there's unnecessary torque on the carabiner which can make the carabiner fail below its rated value.
- CloveHitch at chockstone.org
- clove hitch at About.com has a little bit of info and 1 picture

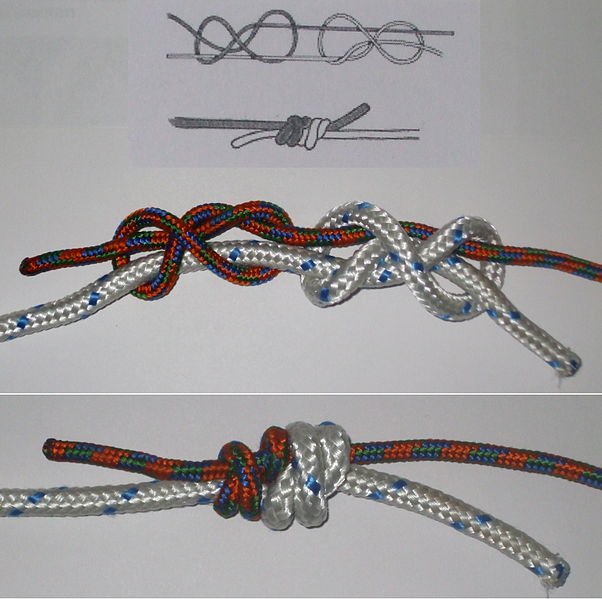

Double Fisherman's Knot
This can be used for joining ends of rope together. Done correctly, it is very strong and relatively low profile. We most commonly use it to make loops for prusiks, which in turn are useful for all kinds things: tying in to fixed lines, escaping belays, ascending a rope, crevasse rescue, and so on.
How To Tie a Double Fisherman's Knot
This is a nice illustration.
Here are some images from Wikimedia Commons:
Euro Death Knot
The Euro Death Knot (EDK) can be used for tying rope ends together for a rappel.
Figure Eight Knot
This is the standard knot for tying into the end of a rope.
Munter Hitch
The Munter Hitch is awesome! You can use it to belay or rappel if you have dropped your belay device; this alone is a reason to know it, as eventually you will drop your belay device. Also useful for things like Crevasse Rescue.
The Munter Mule
A way to tie a munter hitch off.
See Also
- Munter Hitch article on Wikipedia
- Short guide to the Munter Hitch from Climbing magazine, May 2010.
- Related: how to tie the Munter-Mule combination lock (e.g. to tie off a belay)
- Climbing Tech Tip on How to Escape a Belay
- A way to use carabiners to build a rappel device
Prusik
The Prusik (or spelled prussik) is the most basic friction knot used in climbing and mountaineering. It can be used for self-belay and for progress capture (e.g. during rescue situations).
Similar knots include the Bachmann Knot, Klemheist, and Autoblock; there are other friction hitches such as Blake's Hitch that may be useful in similar situations as well. The prusik is notable because it is bi-directional (it will hold in up and down directions) and has very good grip. The main downside is that it easily tightens, and is difficult to slide up. Alternatives include the knots mentioned earlier (Bachmann,...), or static (e.g. the Petzl Tibloc) and dynamic (e.g. the original jumar, or modern versions) mechanical ascenders.
The prusik is used for tying a smaller rope or cord (typically, between 5mm and 8mm, with 6mm and 7mm being the most common) around a bigger rope (usually 9mm to 10.5mm).
Bluewater rope company makes some cord specifically designed for prusiks; this nylon cord is dynamic (like a dynamic rope), whereas most cord under 8mm is static. The cord is also designed to be flexible and thus allow tighter knots. They have 6.5mm, 7mm and 8mm cord. The 6.5 mm cord is an ideal diameter for prusiks.
The knot is very simple to tie: it is similar to a girth hitch, but with more wraps. It is typically tied with 2 or 3 wraps. More wraps will give it more holding power. If the thicker rope is relatively skinny (e.g. < 10mm) or if it is icy, the prusik will not hold as well, and you should have at least three wraps.
The term prusiking up a rope is jargon for ascending a rope.
How To Tie a Double Fisherman's Knot
Here is an animation.

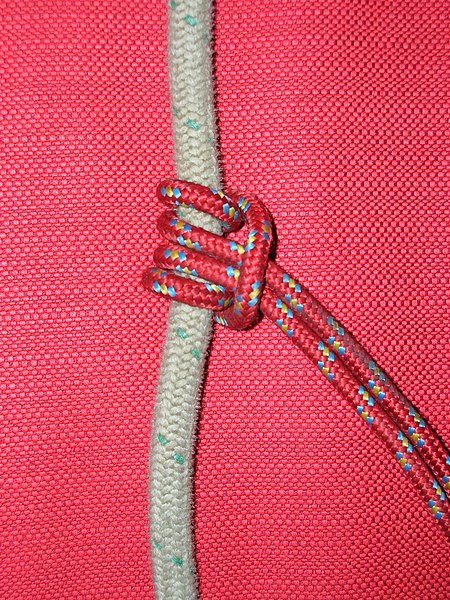

These pictures show prusiks with 2 wraps (that is, 4 wraps total since it is symmetric). We recommend 3 wraps (that is, 6 wraps total) for mountaineering, or even 4 (8 total) for ascending a thin line.
